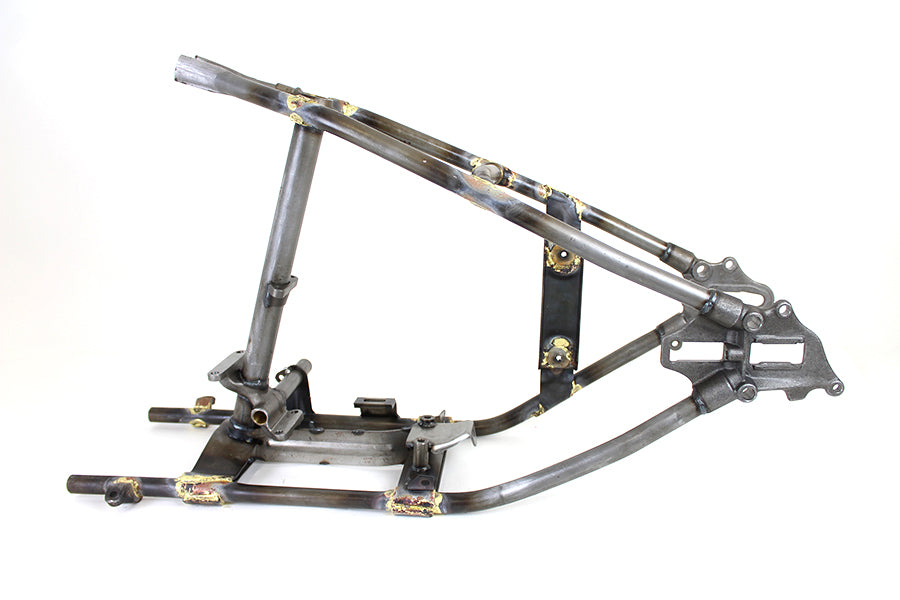

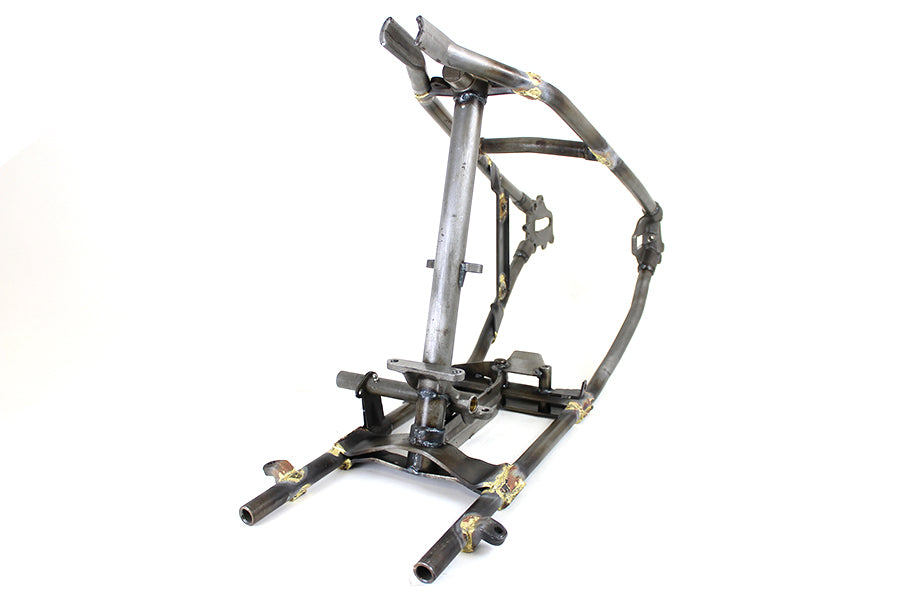

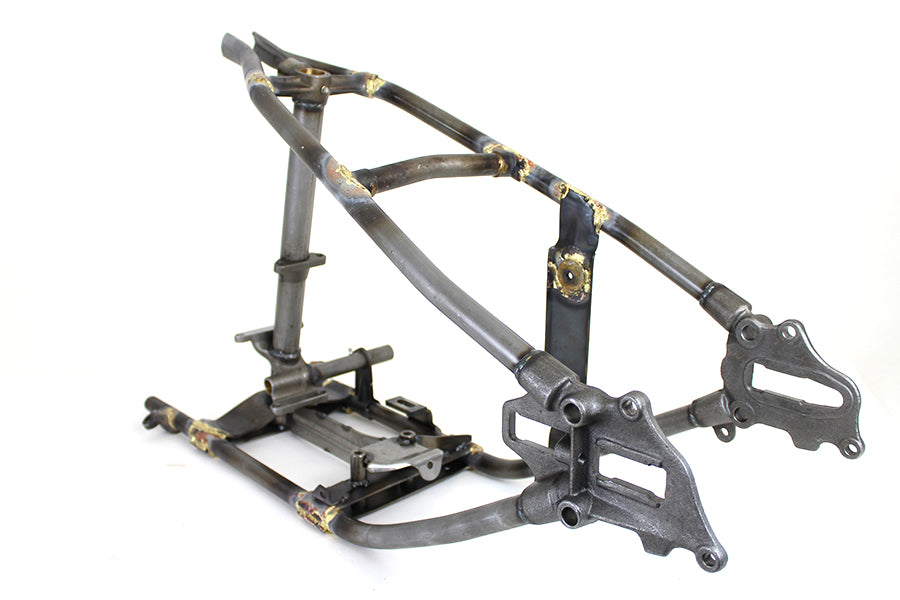

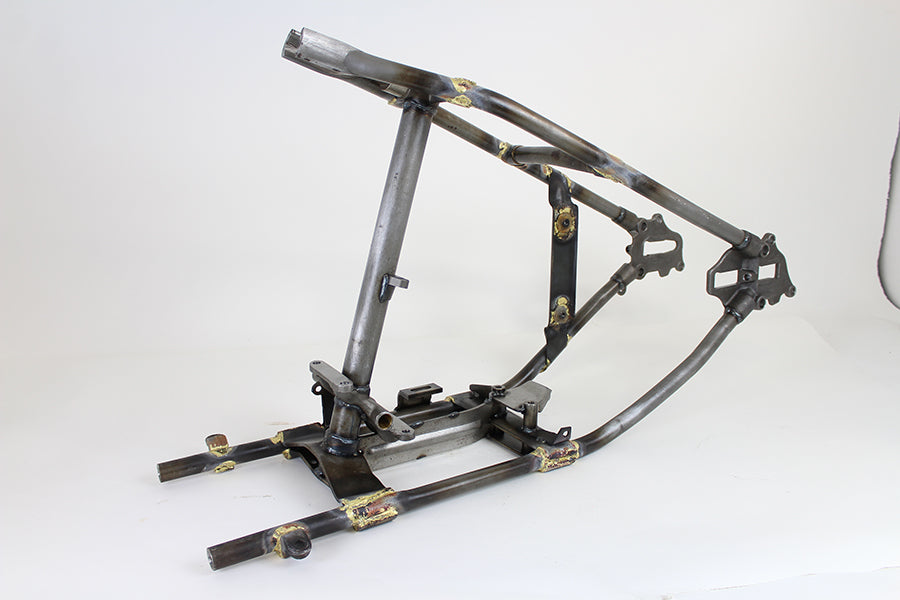

Knucklehead Rigid Rear Frame Section(EA)

Rigid hardtail frame raw steel rear section is the replica construction with components featuring brazed joints Forgings do not have factory hallmark numbersbrbrThe rear transmission mounts are 2 from the bottom cross beam to the top of the plate May be used to repair 19361947 Knucklehead frames This rigid hardtail rear frame section includes rear engine mount center post front transmission mount transmission cross strap spools rear axle plates fender cross tube tool box mount oil tank mount lower fender mount footboard tabs as a welded assembly as pictured Accepts 4 speed transmission mount plate 19361947 mechanical rear brake components and a 19361947 FL or FX front frameneck section NOTE Installerfabricator will have to salvage existing top tank tube or provide a new one Seat post and a wrap around oil tank can be installed as original Includes cross shaft bushings installed with cross shaft Rear axle assembly accepts star hub wheels NOTE Must be welded or brazed in place
