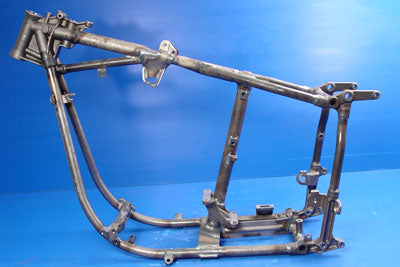

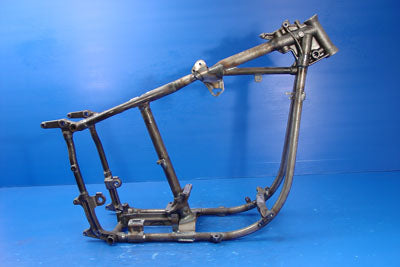

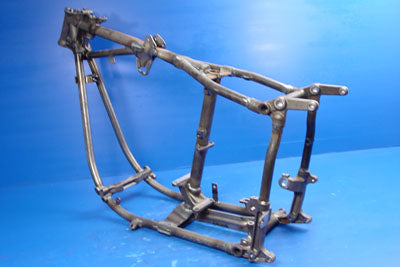

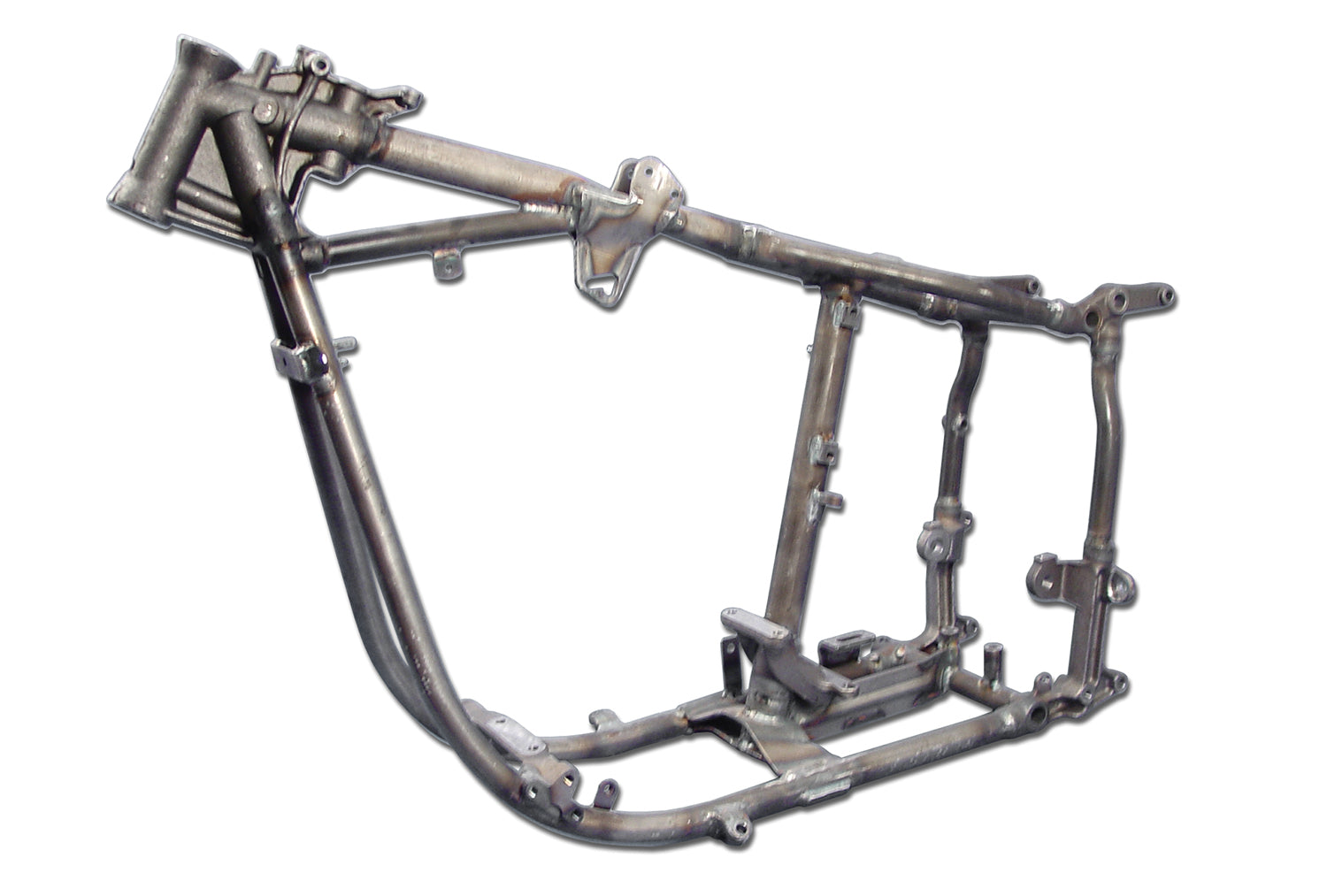

1958-1964 FL Swing Arm Frame(EA)

Raw replica swingarm frame is an authentic reproduction of FLH style for 19581964 kick start models only Swingarm is a nonelectric start and is for use with 6 volt components This is the lower dropped frame and accepts neck lockbrbrFrame accepts Panhead or Shovelhead engine 4speed left side drive transmission seat post and round or square swingarms Details include forged parts as original in neck motor mounts front transmission mount top seat post yoke strut and swingarm pivot mount and footboard mount Frame features lower drop frame and accepts 6 volt battery early wrap around oil tank kick start and includes footboard tabs Neck will accept plunger type lock assembly and features provision for lock insert Frame will accept round 195872 drum brake or square 197385 swing arm Order neck key lock and shock studs separately recommend using 12 or 1312 shocks Rear drum brake models use 1312 shocks and rear disc brake models use 12 shocks Seat post bushing may require further reaming for proper fit For this reason frames will not be accepted for return RGA NOTEVTwin MFG supplies a Bill of Sale only Note UPS may consider this part as packaged oversize for shipment as compared to the actual weight which will result in higher shipping costs NOTE There are no serial numbers stamped on the replica frame VTwin MFG supplys a Bill of Sale only referencing the part number
